Custom Order, Metal Handrail Volute Flat Black, Red Crest Design

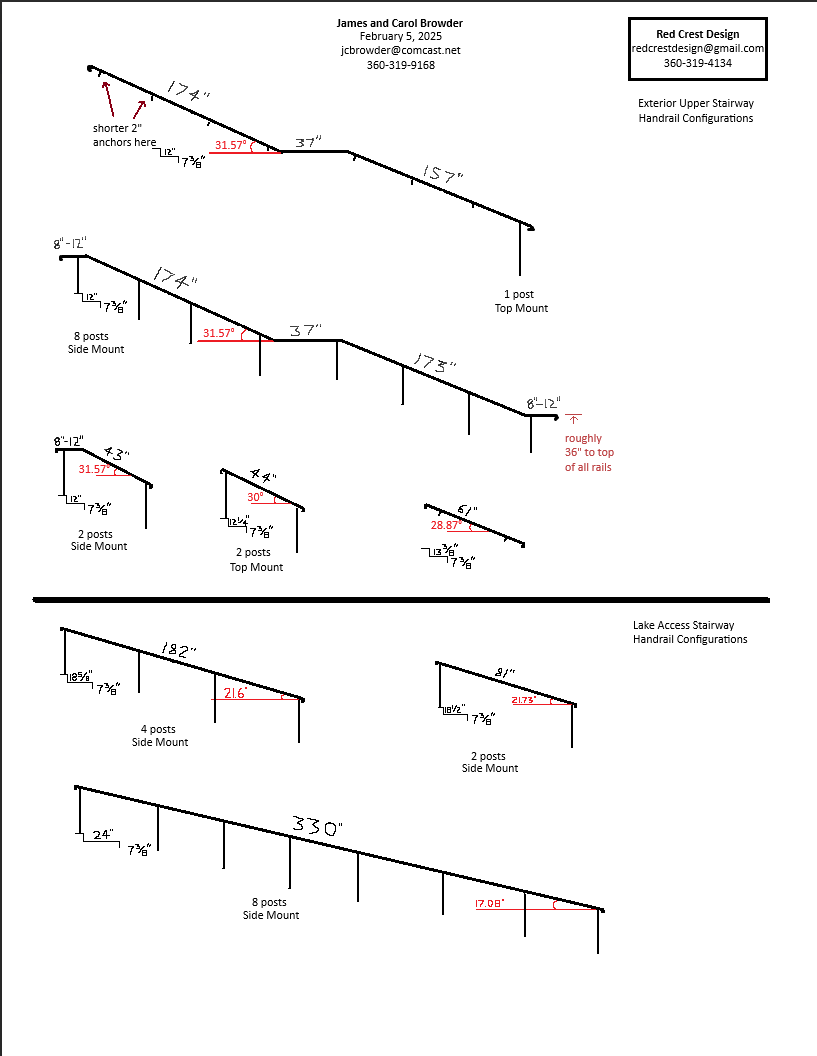

8 Handrails (See Drawing Attached)
1) 174" Angled / 37" Leveled / 157" Angled
Wall Mounted. The top 2 Brackets will be standard and the rest of the brackets will extend 2 inches. The bottom end of the handrail will have a newel post .
2) 12" Leveled / 174" Angled / 37" Leveled / 173" Angled / 12" Leveled
Post mounted and the post will attach to the side of the step.
3) 12" Leveled / 43" Angled
Post Mounted and the post will attach on the side of the step.
4) 44" Angled
Post Mounted and the post will attach the top of the step
5) 61" Angled
Wall Mounted
6) 182" Angled
Post mounted and the post will attch on the side of the step
7) 81" Angled
Post Mounted and the post will attach on the side of the step
8) 330" angled
Post Mounted and the post will attach on the side of the step
